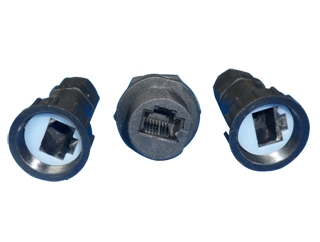

This cable waterproof connector is suitable for the ADSL network cable and new photovoltaic technology products. such as LED, LCD control cable waterproof quick connection. Both ends can be quickly to plug access line.
(note: this little head when wiring the cables must be through the waterproof head again after pressure crystal head, other designs of cable can be pressed crystal head directly through the waterproof head)
1.Product types: one end fixed on the box body, both ends of waterproof
2.product model:RJ45M20Y4
3.number of cores:8 core
4.Protection grade: IP67
5.Access: the RJ45
M20 installation size (inch screw teeth), it is suitable for the thickness of 20 mm below the outdoor AP waterproof boxes.
|
