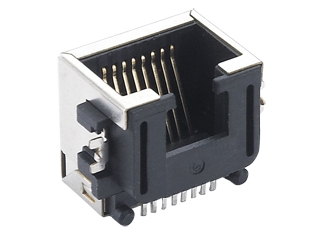

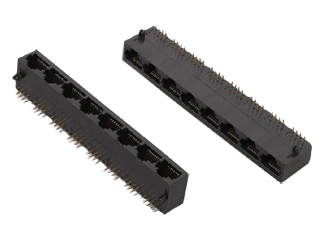

Band filter RJ45 network interface electrical characteristics
Electrical:
Current Rating:1.5A
Voltage Rating:120V
Insulation Resistance:Mini 500Ω
Withstand Voltage:AC 1500 V RMS 50Hz or 60Hz 1 Min
Contact Resistance:Max20Ω
Retain strength:7.7KG
durability:750 mating cycles mini
Meterial:
Plastic housing
1) glass filled PA66(ul 94v-0)
2) glass filled PA46(ul 94v-0)
3) glass filled PBT(ul 94v-0)
Insert core:
1)0.45mm phosphor bronze alloy nickel plating after gold-plated.
2)0.35mm thickness phosphor bronze alloy
3)shielding case:0.2mm Tin plated copper alloy
gold-plating:3μ″,6μ″,15,μ″,30μ″,50μ″
operating temperature:-40℃-70℃
Electrical properties under 25 ℃ |
