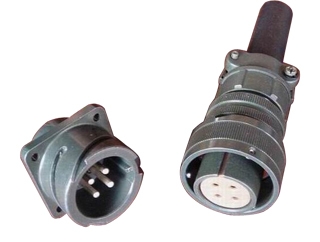

Type:HMS
This series of products in accordance with MIL - C - 5015 standard enhanced technical requirements, adopting reverse bayonet connecting method, the contact body adopts crimping type structure, with fast connection, vibration resistance, impact resistance and other advantages, are interchangeable with standard VG95234 electric connector and docking, widely used in aviation, electronics, railway, machine tool numerical control system, etc.
1.Object number: 10 sl, 14 s, 16 s, 18,20,22,24,28,32,36,40
2.Contact diameter: 1.6 mm, 1.6 mm and 3.6 mm
3.Contact number: 1-60
4.Hole array form: 17
5.Plug a mechanical life,:500 or more times
6.Vibration: 10-100 hz sinusoidal vibration, acceleration of 20 g
7.Impact: 30 g acceleration
8.Ambient temperature: 55 ℃ ~ + 125 ℃
9.The hot test: + 100 ℃ for 96 hours
10.Resistant to salt spray: 500 hours
11.The waterproof level: IP67
12.Fire rating: UL94VO
13.Resistance to liquid: gasoline, mineral oil, acid, alkali, etc
14.Insulation: 5000 MB or more Ω (room temperature)
15.Rated current, 15A, 20A, 25A
16.The dielectric withstand voltage: 1000 v, 1000 v, 2800 v, 3500 v, 4500 v, 7000 v
17.Working voltage: DC: 250 v, 250 v, 1250 v, 1750 v, 2450 v, 4200 v, Communication: 200 v, 500 v, 200 v, 1250 v, 1750 v, 3000 v.
This series of products through UL, CE certification and ROHS test. The price is reasonable, quality assured, can satisfy large quantities of order, delivery timely, considerate after-sales service.
|
